Redundant Channels

In this topic, you will learn how to create Redundant Channels. Redundant Channels allow you to send two contribution sources with automatic failover for uninterrupted, reliable playback.

Enabling Redundant Channels

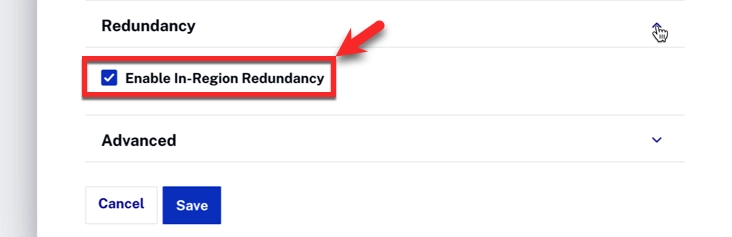

While Creating a New Channel, scroll down to the Redundancy section and select Enable In-Region Redundancy.

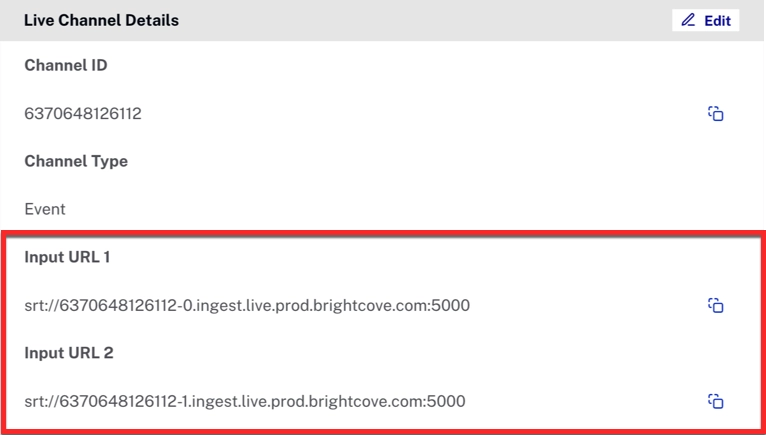

After you click Save, Scroll down to the Live Channel Details to see your Input URLs.

You can stream to both endpoints to create live-stream redundancy and ensure uninterrupted playback.

Manual Failover

You can manually switch between redundant inputs in a Live 2.0 job using the Force Failover API:

PUT
/v2/accounts/{account_id}/jobs/{job_id}/failover

Reference page: Force Failover API Documentation

The required pipeline_name parameter corresponds to the ingest pipeline names listed in the job's ingest_states object. You can retrieve these values by requesting the job details via the Live 2.0 API.

Example job response:

"ingest_states": {
  "ingest-1": "connected",
  "ingest-2": "connected"
}

In this case, the valid pipeline_name values are:

ingest-1
ingest-2

When performing a force failover, you must set pipeline_name to the ingest you want to fail from (the currently active or problematic pipeline), not the one you want to switch to. The system will automatically fail over to the alternate redundant input.

Example request body:

{
  "pipeline_name": "ingest-2"
}

This request forces ingest-2 to fail, triggering a switch to the other available ingest pipeline.

Monitoring

Click the Health Monitoring tab below the preview player to view monitoring information for both streams simultaneously.

Monitoring information is available while a channel is in progress and for up to 1 hour after the channel ends.

Enable Low-Latency Redundant Streaming

This topic shows how to create a low-latency event with in-region redundancy in Live.

Creating an Event Channel

In Studio, open the Live module.

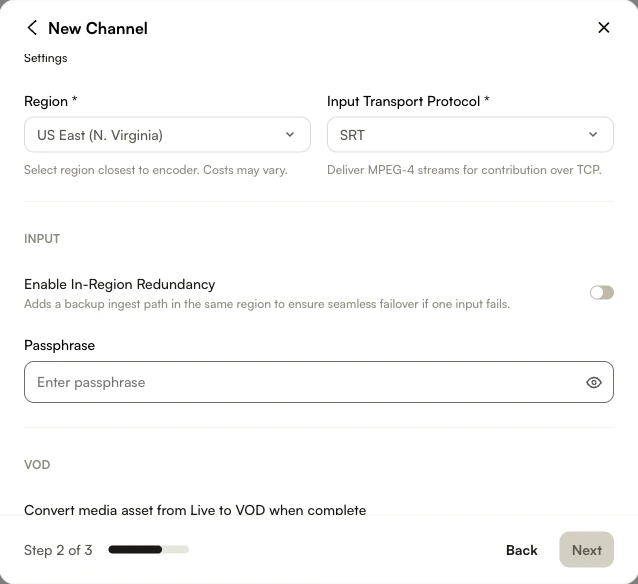

While creating a new channel, select Enable In-Region Redundancy under the Redundancy section.

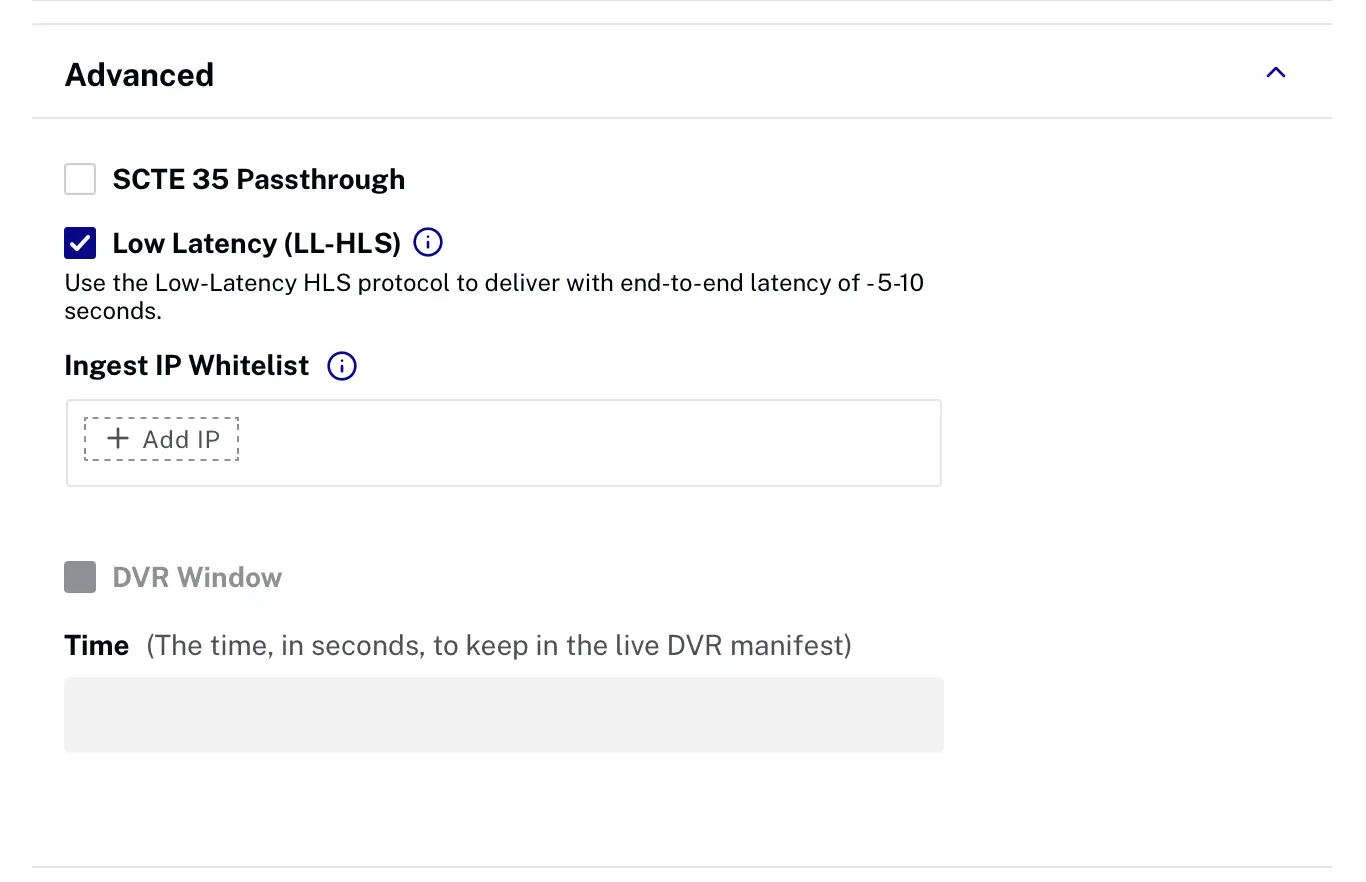

Scroll down to the Low latency section.

Click Create Event.
After the event is created, note the SRT/RTMP Ingest URLs for both primary and backup feeds.

Configure ffmpeg for low latency

In the terminal, enter the following command (replace input.mp4 with your source):

ffmpeg -re -i input.mp4 -c:v libx264 -profile:v baseline -level 3.0 -preset ultrafast -g 30 -keyint_min 30 -sc_threshold 0 -r 30 -x264opts "no-scenecut" -c:a aac -b:a 128k -f mpegts "srt://0123456789-1.ingest.live.brightcove.com:5000?pkt_size=1316&latency=200"
